Description

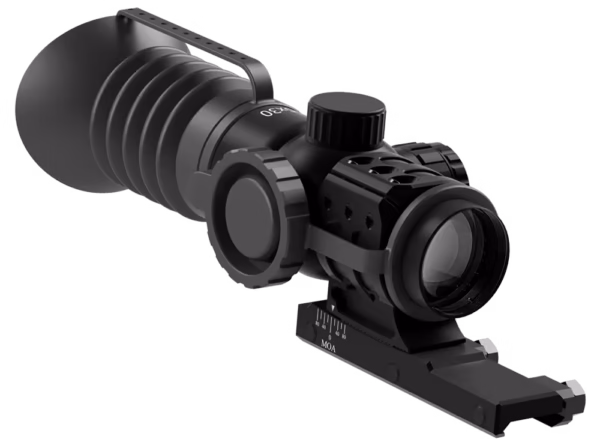

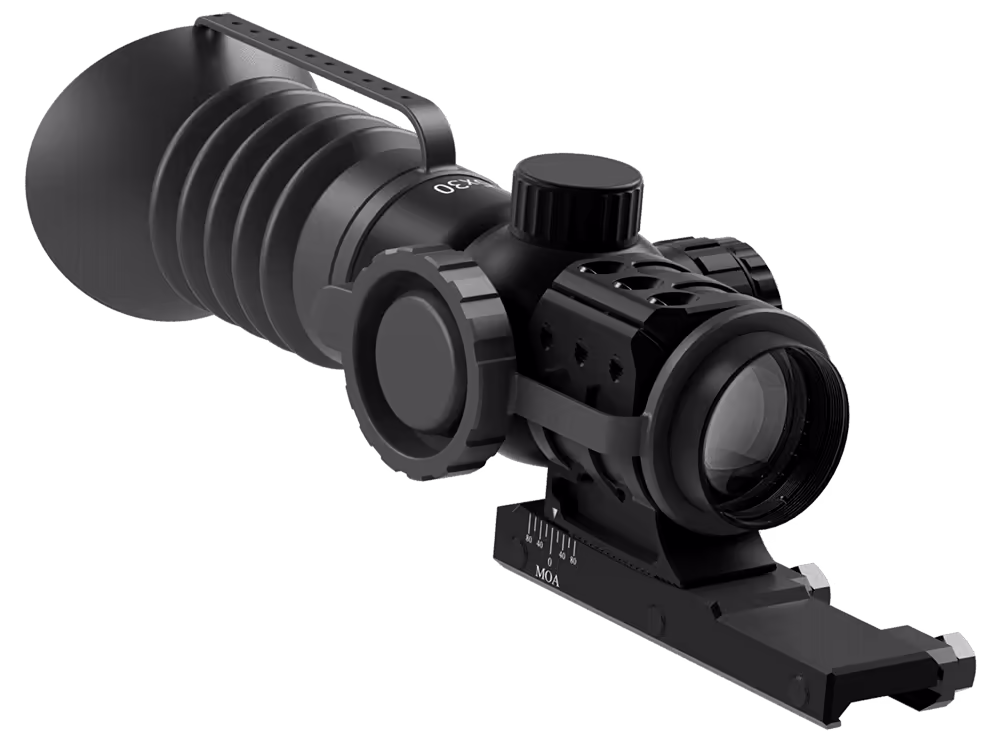

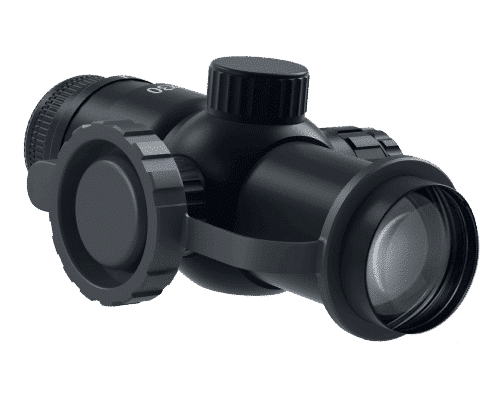

Lightweight and compact CQB style sight with medium (45mm) eye relief to suit a range of calibres. Field of view at least 2x wider than traditional scopes.
A compact sight with the sharpest image and improved light transmission. Bright picture for using from dawn to dusk.
Supplied with MOA adjustable set of mounts.
Prismatic design allows us to make much more compact and lightweight scopes with superior optical performance. Being compact allows for much better Gun/Scope weight distribution, the weight being further back massively reduces fatigue, which allows the shooter to stay out longer and shoot more accurately.
Main Tech:
- at least to 2X wider field of view when compared to traditional sights
- only 130mm long
- focusing down to 6 meters
- ED (Low dispersion) Glass and CNC machined precision mechanics
- 0.1 MRAD turrets to match MILDOT reticles
| Parameter | Value |
|---|---|
| Magnification, X | 5 |
| Objective Lens Diameter, mm | 30 |
| Eye Relief, inches / mm | 1.77 / 45 |
| Tube size, mm | 34 |
| Field of View, ft@100yds/ m@100m | 37 / 12 |
| Minimum Focusing, m | 6 |
| C lick Value (MIL /MOA/cm@100m) | 0.1 / 0.338 / 1 |
| C licks per Revolution | 50 |
| Travel Per Rotation (MIL / MOA) | 5 / 15 |
| Max Elevation Adjustment (MIL / MOA) | 28 / 83 |
| Max Windage Adjustment (MIL / MOA) | 28 / 83 |
| Sight dimensions, mm | 72 x 53 x 130 |
| Sight dimensions, in | 2,8 x 2,1 x 5,1 |
| Weight (without mounts) oz / gr | 11.8 / 336 |
| Weight (with MOA adj. mounts) oz / gr | 15.8 / 450 |
| Waterproof and Nitrogen filled | YES |
| Shock Proof (up to 600G) | YES |
