Description

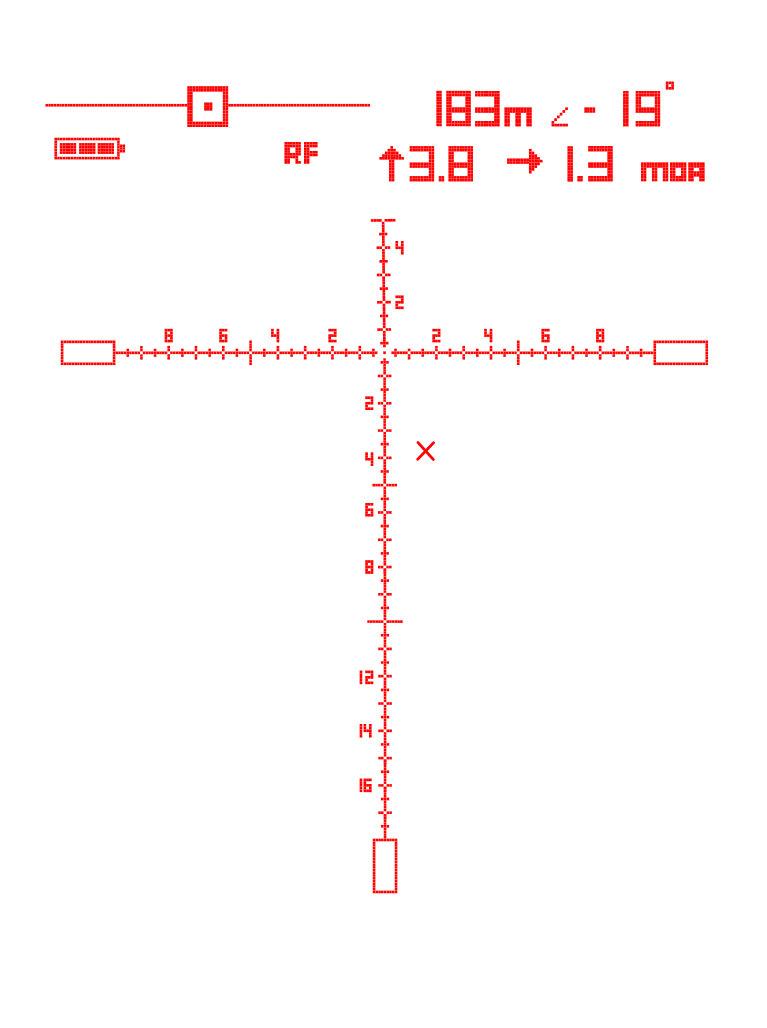

The SmartCross Reticle System is the core digital layer of the product. It supports programmable reticles, live ballistic reticle modes, and user-defined reticle uploads, allowing the end user to configure the sight around a specific discipline, cartridge, or personal preference. This makes the product equally compelling for users who need a highly refined ballistic tool and for those who want a more personalised aiming solution.

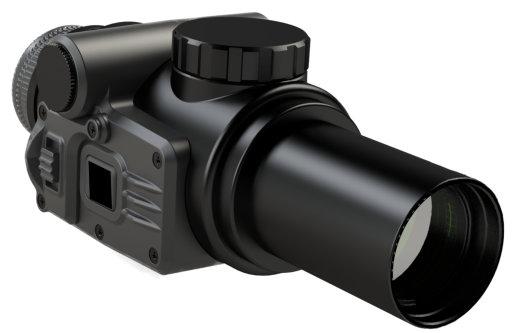

Built around a fixed-magnification prismatic optical architecture, it preserves a natural glass viewing experience while adding intelligent overlay capability, configurable reticles, onboard ballistic support, and external-device connectivity.
When paired with a compatible rangefinder, CrossLink 4 can automatically update the aiming solution and point of aim based on measured distance and stored ballistic data. The result is a cleaner, faster workflow in the field: the shooter keeps the benefit of a true optical image while gaining a reticle system that can react intelligently to real shooting inputs.
| Parameter | Value |
|---|---|
| Magnification, X | 4 |
| Objective Lens Diameter, mm | 30 |
| Eye Relief, inches / mm | 1.77 / 45 |
| Tube size, mm | 34 |
| Field of View, ft@100yds/ m@100m | 45 / 15 |
| Minimum Focusing, m | 6 |
| Click Value (MIL) | 0.2 |
| Sight dimensions, mm | 72 x 65 x 160 |
| Weight (without mounts) oz / gr | 11.8 / 336 |

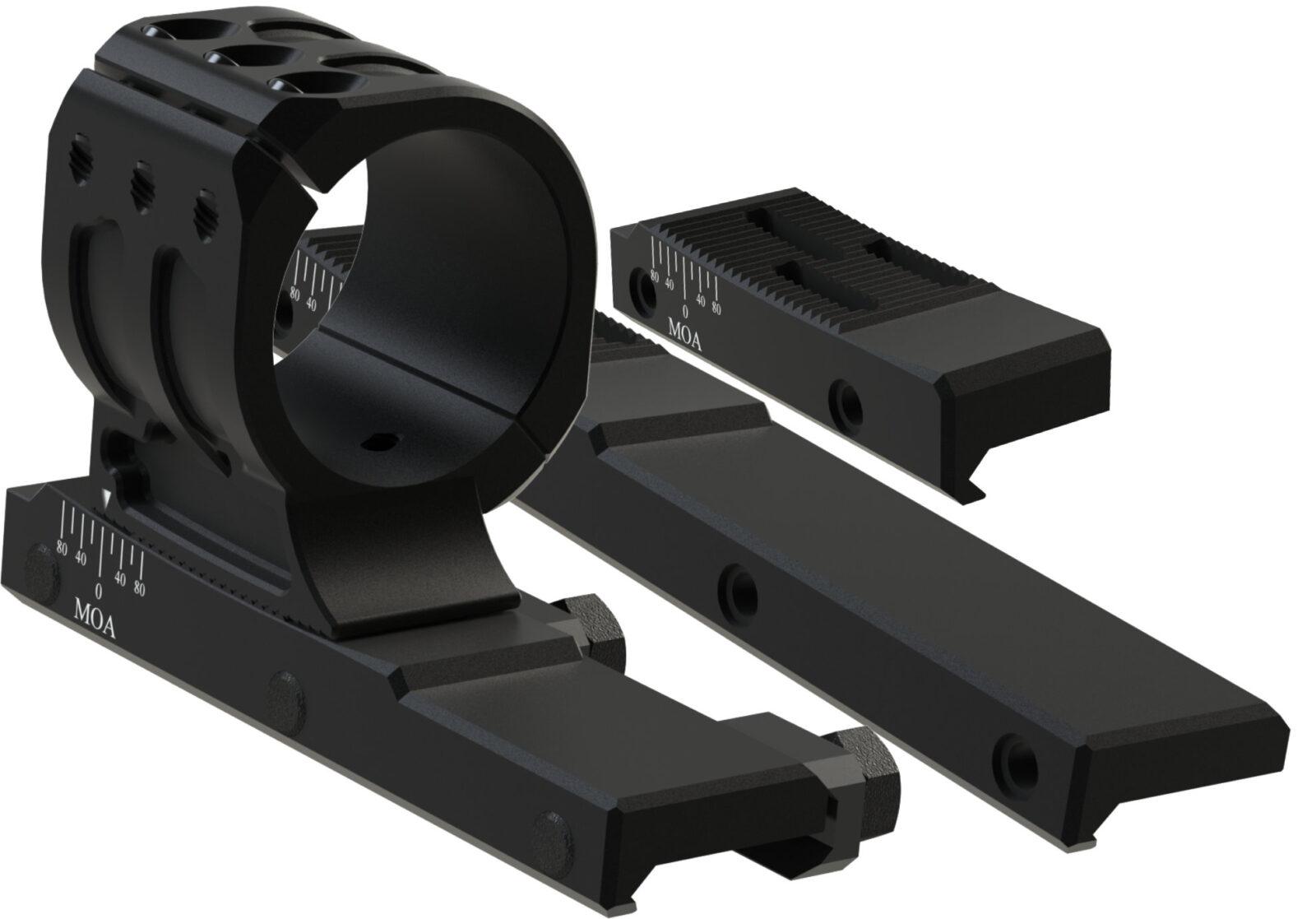

| Weight (with MOA adj. mounts) oz / gr | 15.8 / 450 |
| Waterproof and Nitrogen filled | YES |
| Shock Proof (up to 600G) | YES |
| Battery type | AAA |
| Operation Time (hrs) | >40 |
