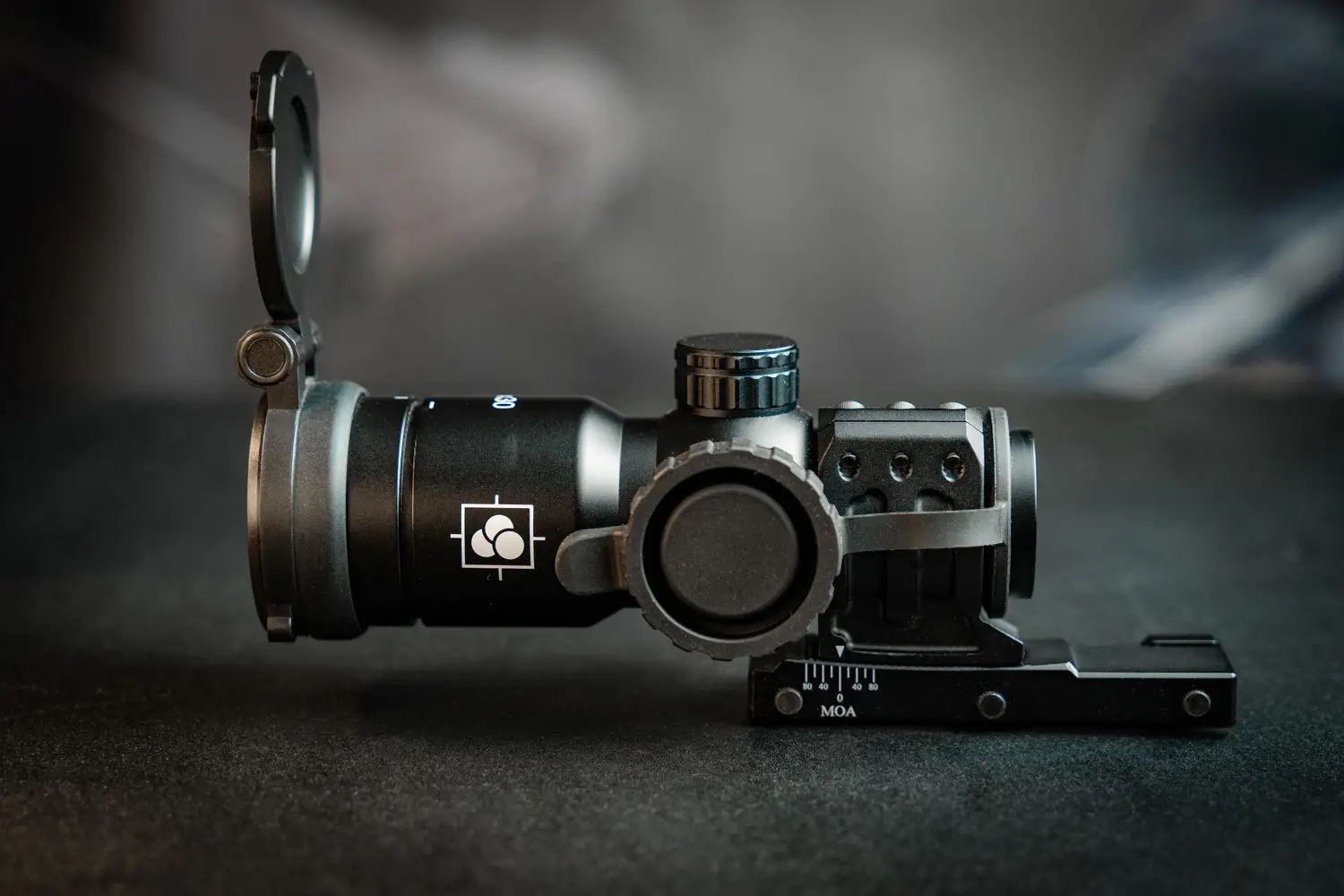

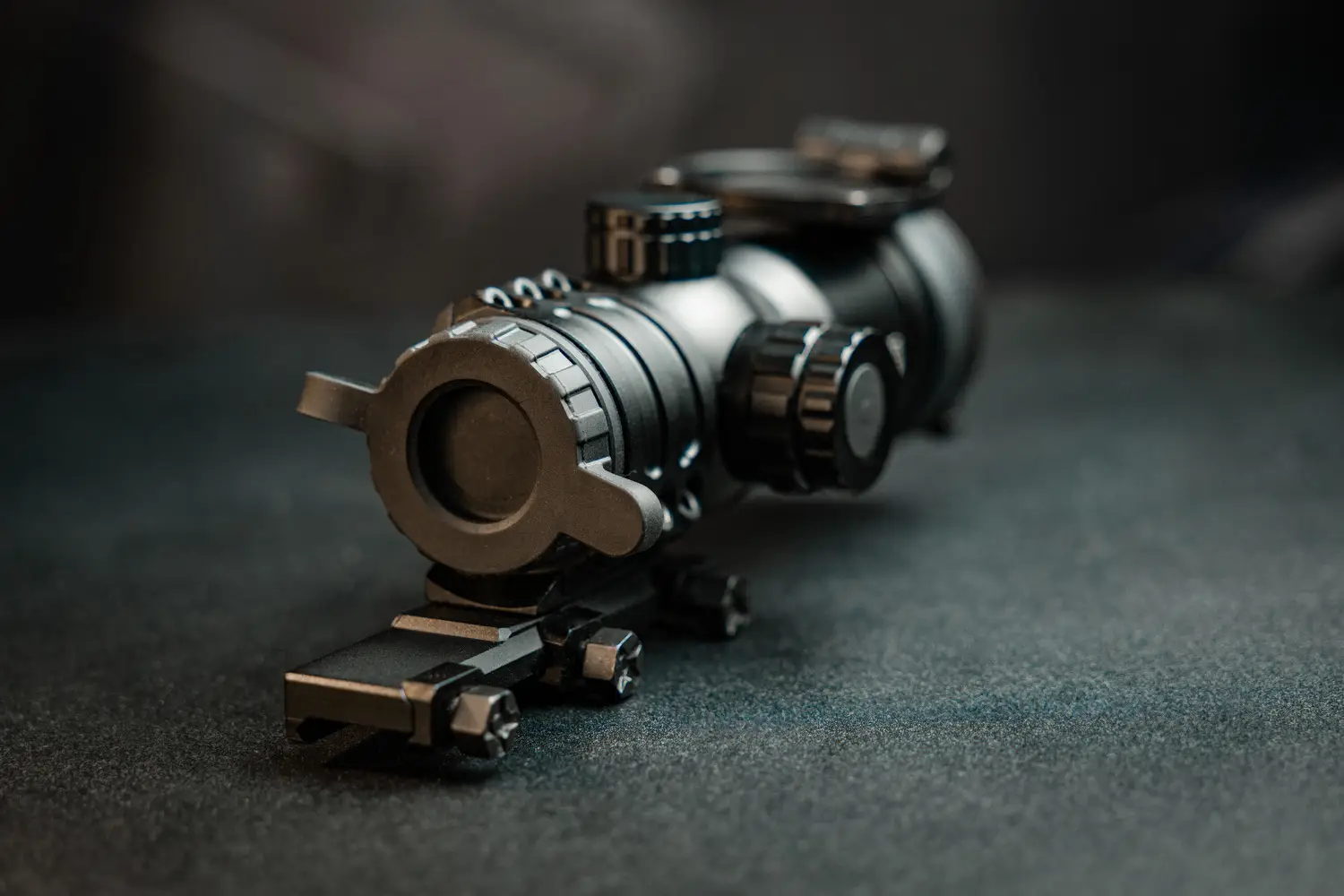

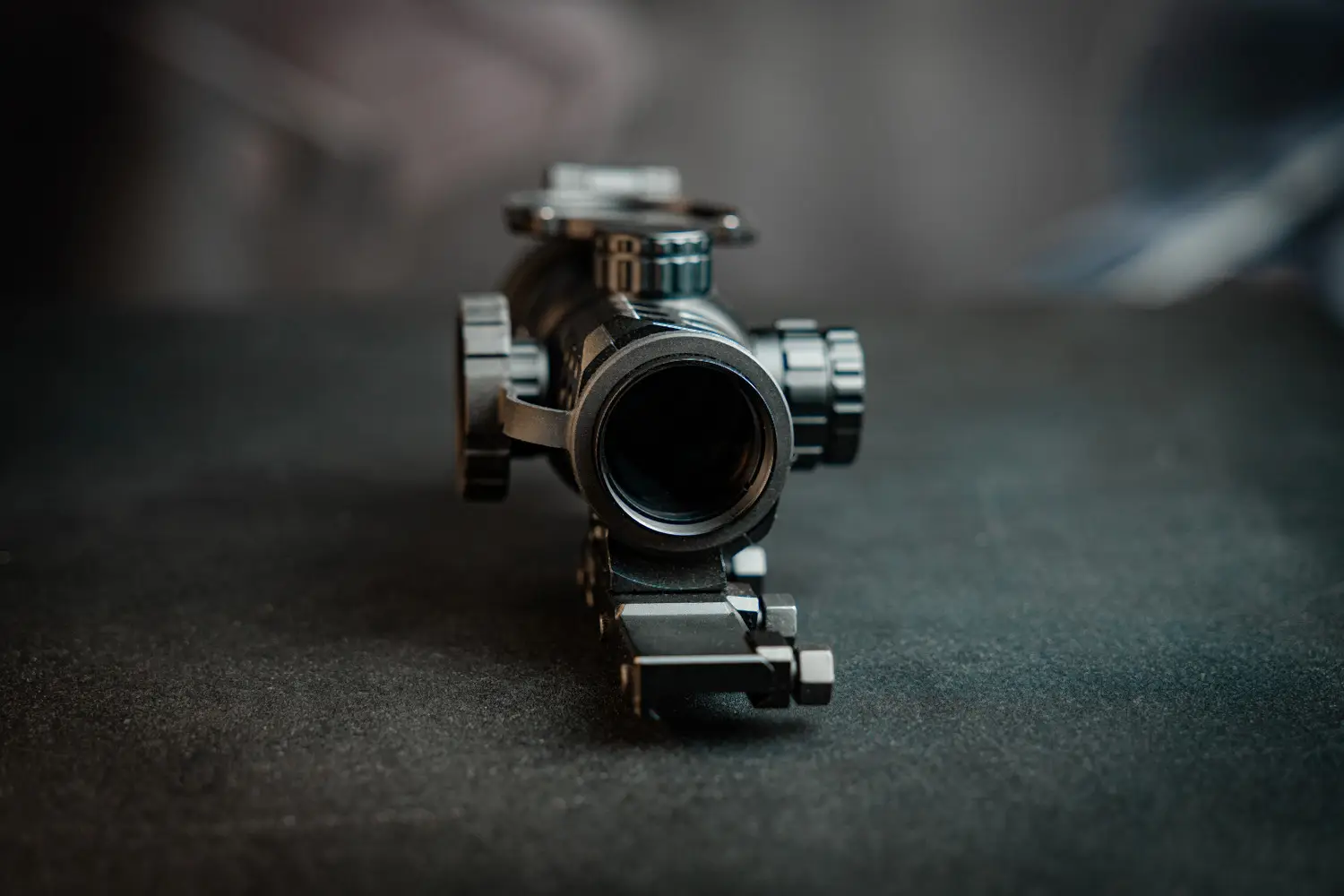

5×30 PRO Prismatic Scope
Our 5×30 Pro prismatic riflescope is designed for centrefire rifles, delivering exceptional accuracy in an ultra-compact format. An 85mm eye relief enhances the field of view while helping to reduce the risk of scope bite. Its sharp image quality and improved light transmission provide a bright, clear sight picture from dawn until dusk
Fitted with Extra-Low Dispersion (ED) glass, this riflescope delivers natural colour reproduction with minimal chromatic aberration, resulting in exceptional clarity and a crystal-clear image, even at extreme distances.
The prismatic design enables a far more compact and lightweight scope while delivering superior optical performance. Its compact form also improves rifle and scope weight distribution, with the weight positioned further back to significantly reduce fatigue. This allows the shooter to remain comfortable for longer and maintain greater accuracy over extended periods.
All Immersive Optics riflescopes are CNC machined for precision and reliability, featuring nitrogen-filled optical channels for anti-fog performance and a waterproof sealed design for protection against moisture. An innovative lens cap retention system allows the caps to be securely clipped to the side of the riflescope, eliminating distractions while shooting.
Depending on the model selected, the 5×30 PRO prismatic riflescope is available with either a glass-etched illuminated Mildot or Mildot Extended reticle, alongside high-precision windage and elevation controls, and is supplied with a set of MOA adjustable mounts.
Parameter
Magnification, X
Objective Lens Diameter, mm
Eye Relief, inches / mm
Tube size, mm
Field of View, ft@100yds/ m@100m
Minimum Focusing, m
Diopter adjustment, dpt
C lick Value (MIL /MOA/cm@100m)
C licks per Revolution
Travel Per Rotation (MIL / MOA)
Max Elevation Adjustment (MIL / MOA)
Max Windage Adjustment (MIL / MOA)
Weight (without mounts) oz / gr
Weight (with MOA adj. mounts) oz / gr
Waterproof and Nitrogen filled
Shock Proof (up to 600G)
Value
5
30
3.35 / 85
34
33 / 10.2
6
3 +/-
0.1 / 0.338 / 1
50
5 / 15
28 / 83
28 / 83
17.14 / 486
22 / 624
YES
YES
