10×24 Prismatic Scope

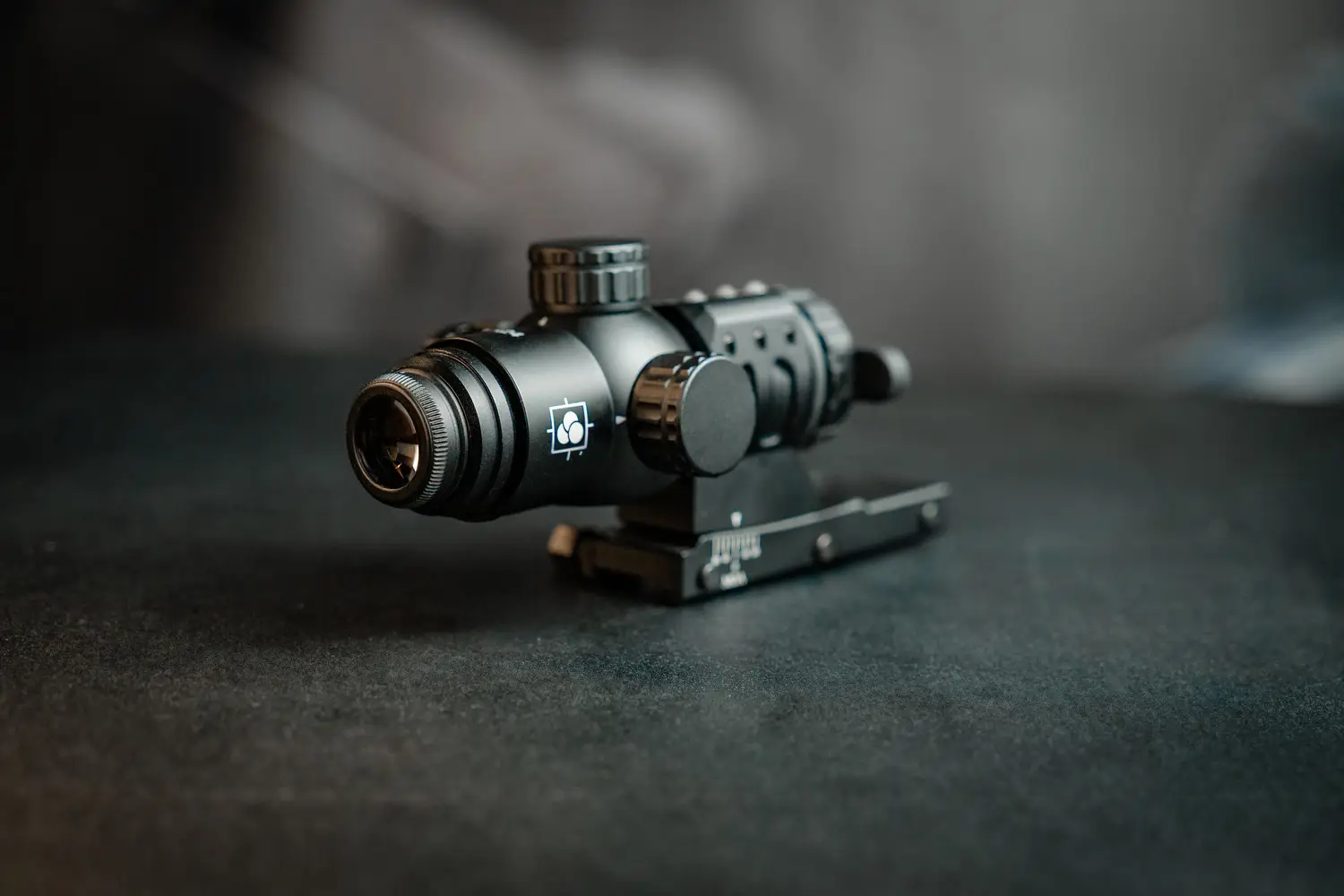

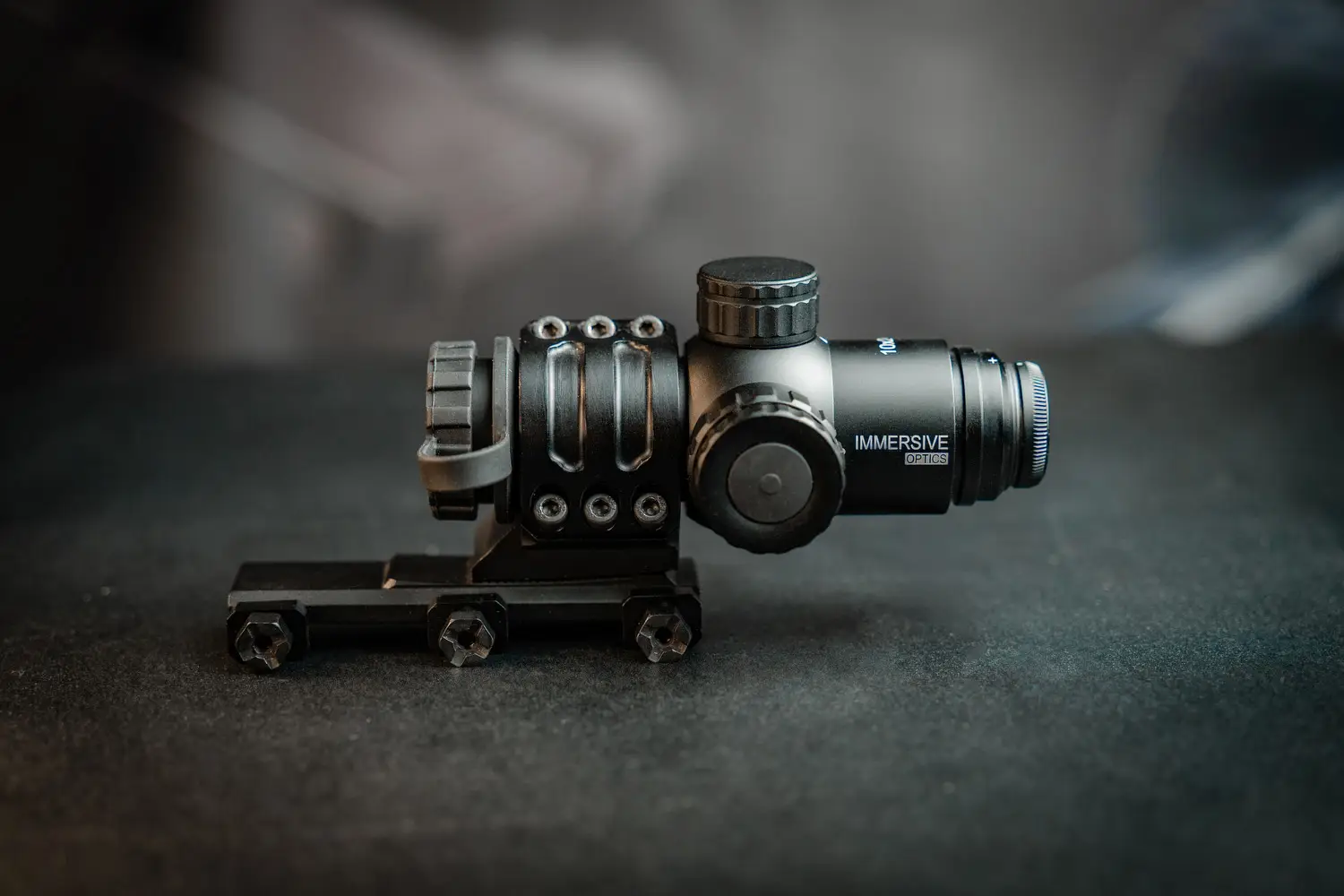

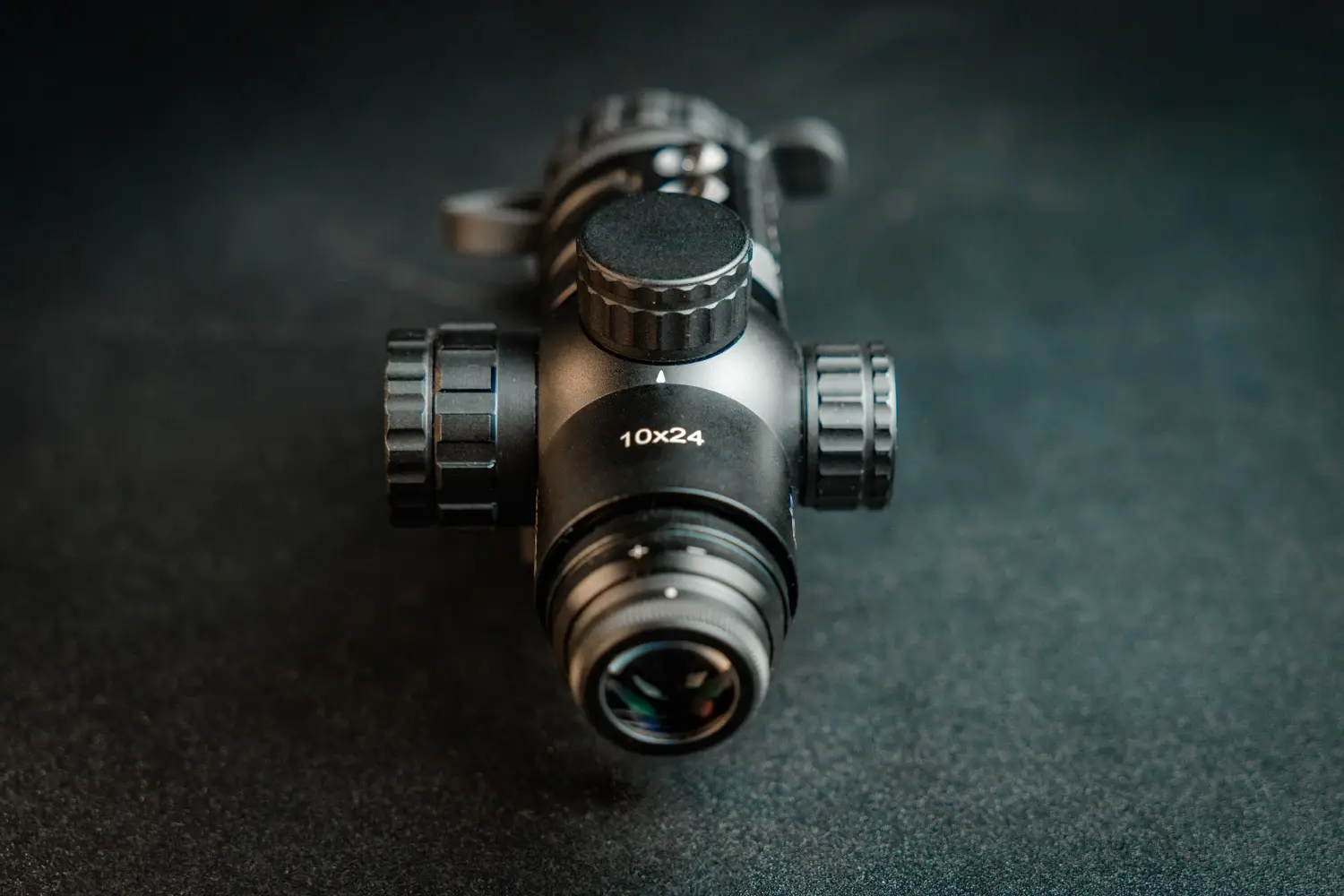

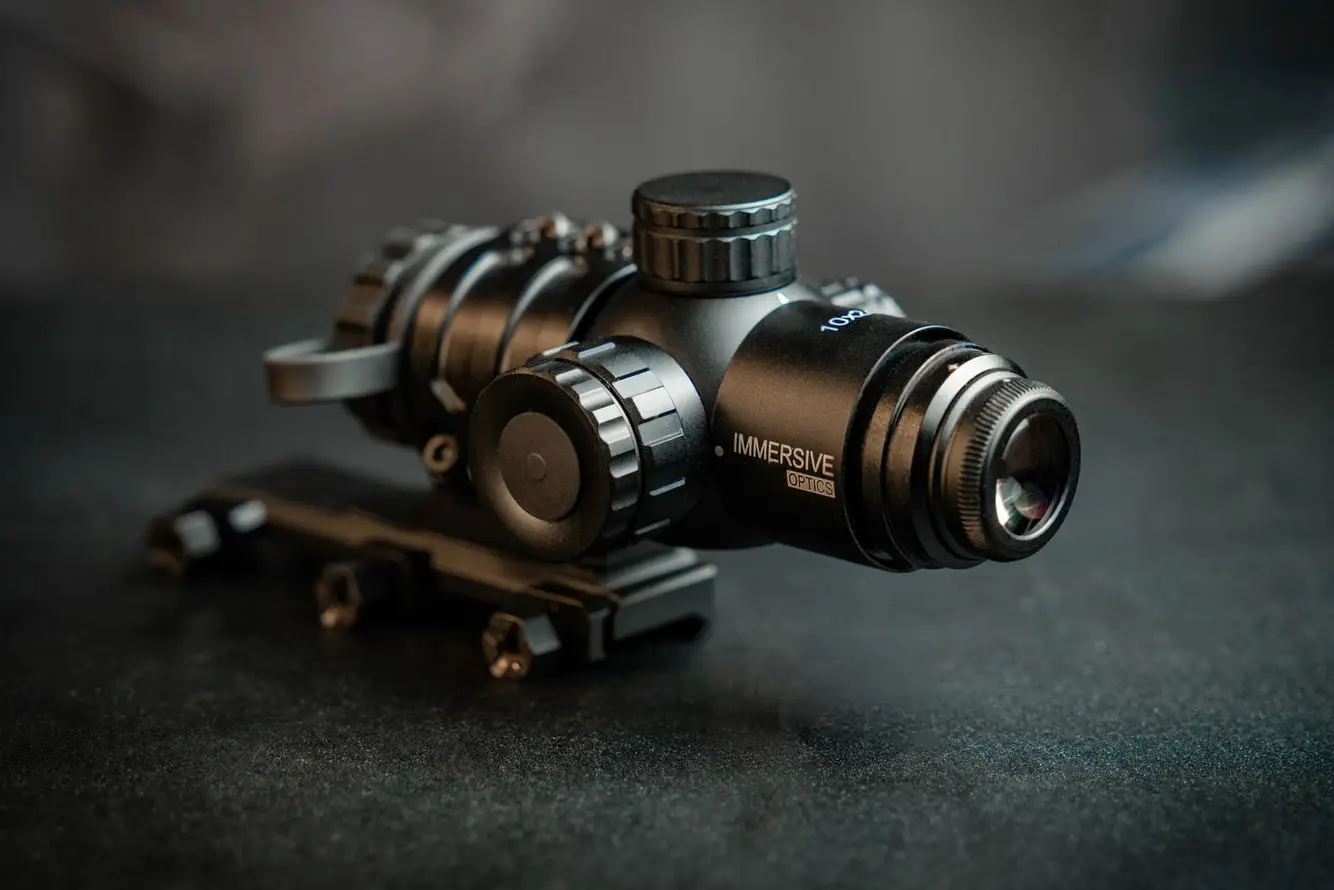

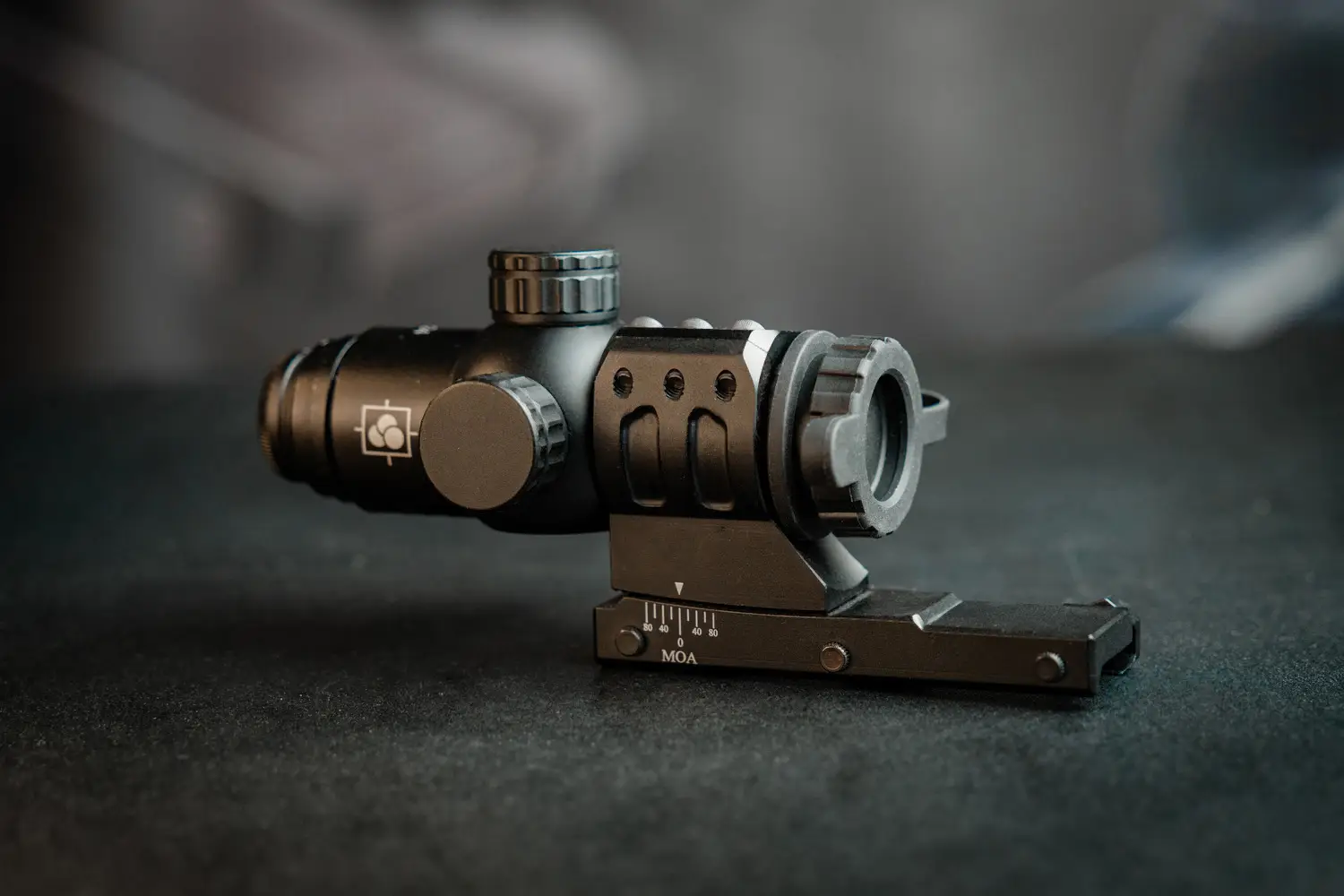

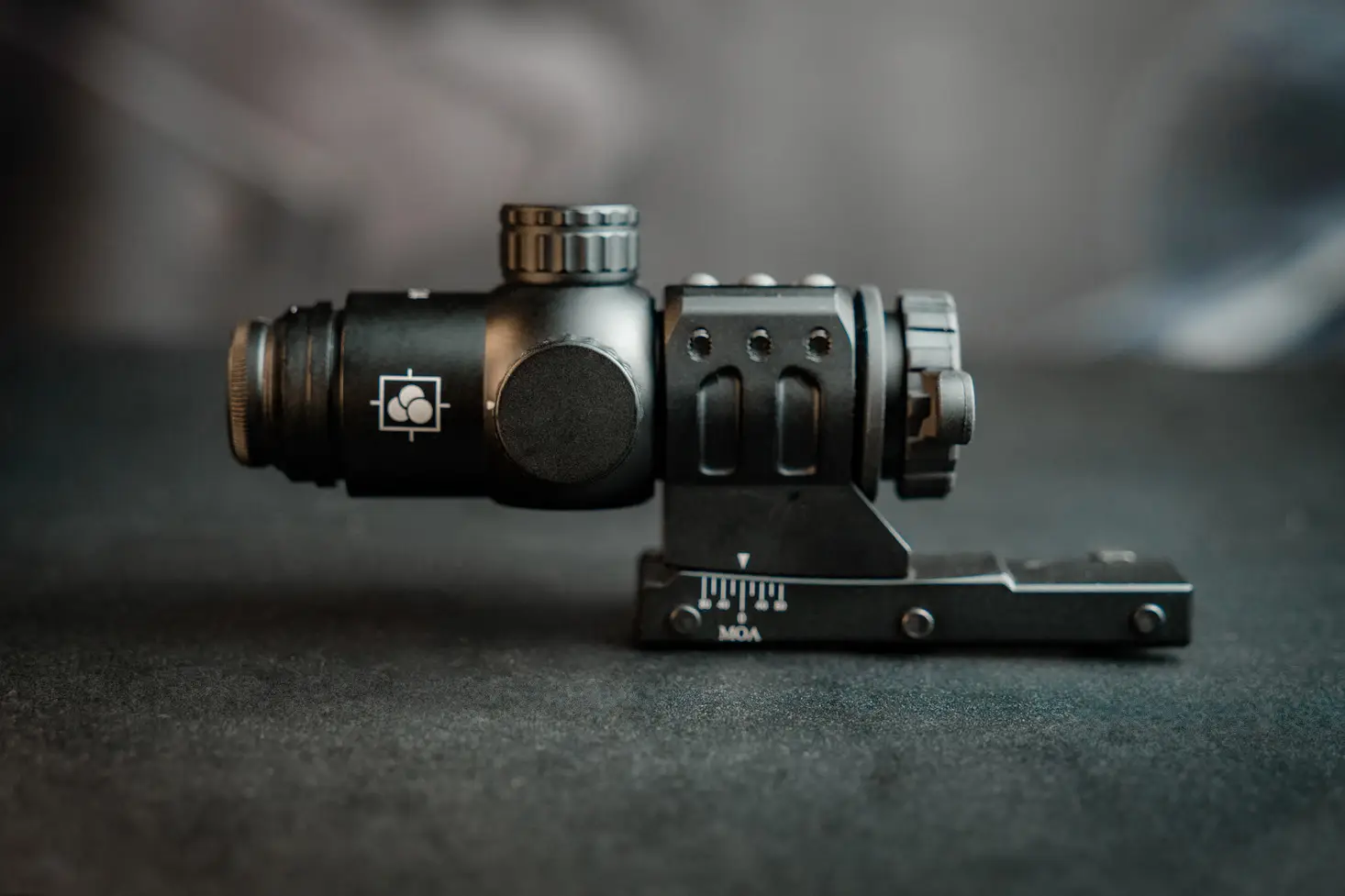

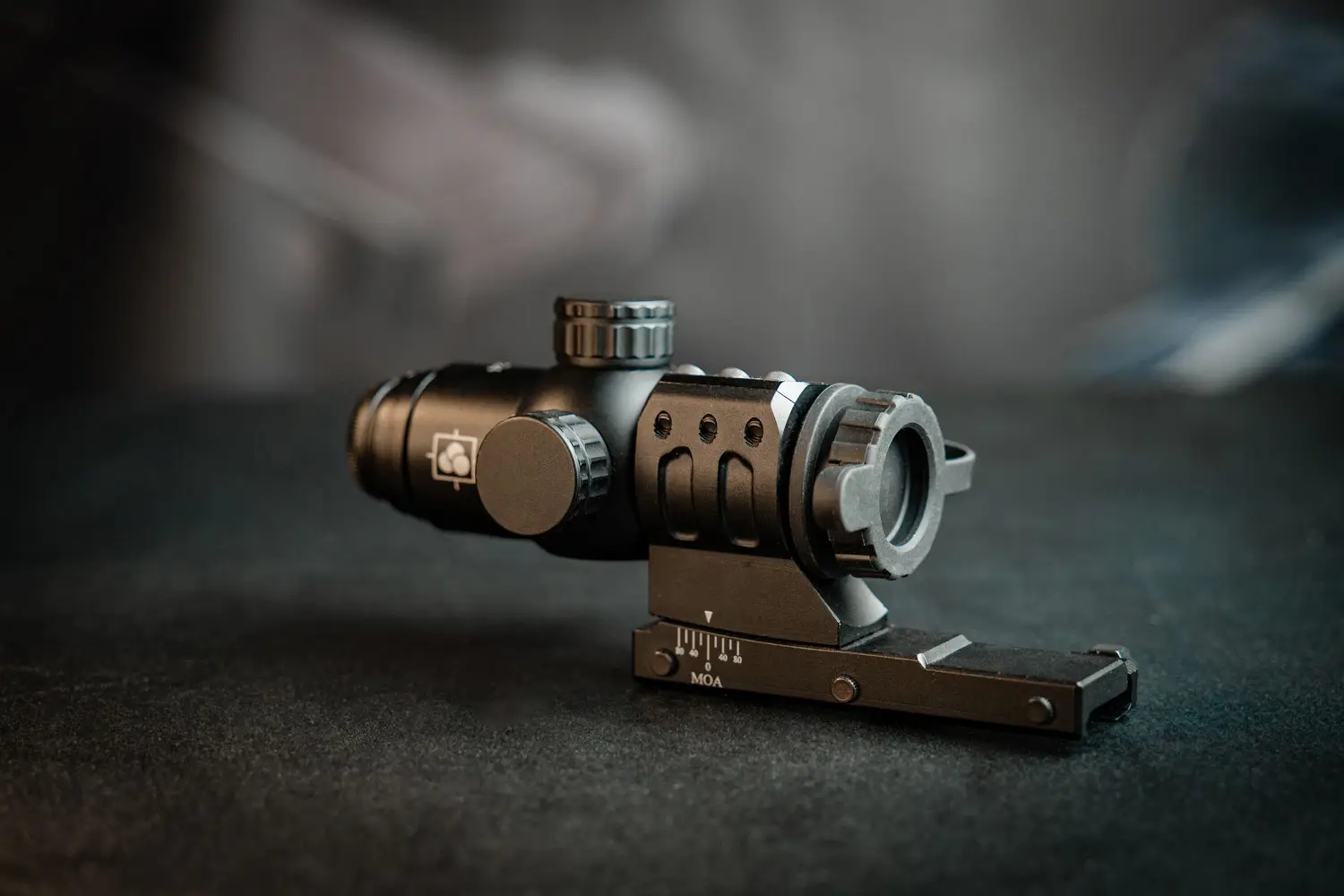

Immersive Optics 10×24 compact prismatic scope

The world’s smallest and lightest 10x magnification scope, with short eye relief and an ultra-wide field of view.

Description

The 10×24 is ideal for compact rifles and air rifles with moderate to low recoil. Compared to traditional riflescopes, it delivers a field of view up to four times wider. With close-focus capability down to 6m and a parallax-free design, the 10×24 provides exceptional optical performance at both close and long range.

Due to the short eye relief, this scope should only be used with recoilless firearms.

Fitted with Extra-Low Dispersion (ED) glass, this riflescope delivers natural colour reproduction with minimal chromatic aberration, resulting in exceptional clarity and a crystal-clear image, even at extreme distances.

The prismatic design enables a far more compact and lightweight scope while delivering superior optical performance. Its compact form also improves rifle and scope weight distribution, with the weight positioned further back to significantly reduce fatigue. This allows the shooter to remain comfortable for longer and maintain greater accuracy over extended periods.

All Immersive Optics riflescopes are CNC machined for precision and reliability, featuring nitrogen-filled optical channels for anti-fog performance and a waterproof sealed design for protection against moisture. An innovative lens cap retention system allows the caps to be securely clipped to the side of the riflescope, eliminating distractions while shooting.

Depending on the model selected, the 10×24 prismatic riflescope is available with either a glass-etched illuminated Mildot or Mildot Extended reticle, alongside high-precision windage and elevation controls, and is supplied with a set of MOA adjustable mounts.

  • Parameter

  • Magnification, X

  • Objective Lens Diameter, mm

  • Eye Relief, inches / mm

  • Tube size, mm

  • Field of View, ft@100yds/ m@100m

  • Minimum Focusing, m

  • C lick Value (MIL /MOA/cm@100m)

  • C licks per Revolution

  • Travel Per Rotation (MIL / MOA)

  • Max Elevation Adjustment (MIL / MOA)

  • Max Windage Adjustment (MIL / MOA)

  • Sight dimensions, mm

  • Sight dimensions, in

  • Weight (without mounts) oz / gr

  • Weight (with MOA adj. mounts) oz / gr

  • Waterproof and Nitrogen filled

  • Shock Proof (up to 600G)

  • Value

  • 10

  • 24

  • 0.55 / 14

  • 30

  • 32 / 10.6

  • 6

  • 0.1 / 0.338 / 1

  • 50

  • 5 / 15

  • 28 / 83

  • 28 / 83

  • 72 x 51 x 122

  • 2,8 x 2 x 4,8

  • 8.74 / 248

  • 13 / 370

  • YES

  • N/A
