SwiftLock® Slim QD Rings

SwiftLock Slim lightweight quick-release scope rings

Just 18 mm (0.7 in) wide, these rings are lightweight and offer the added benefit of alignment studs.

Description

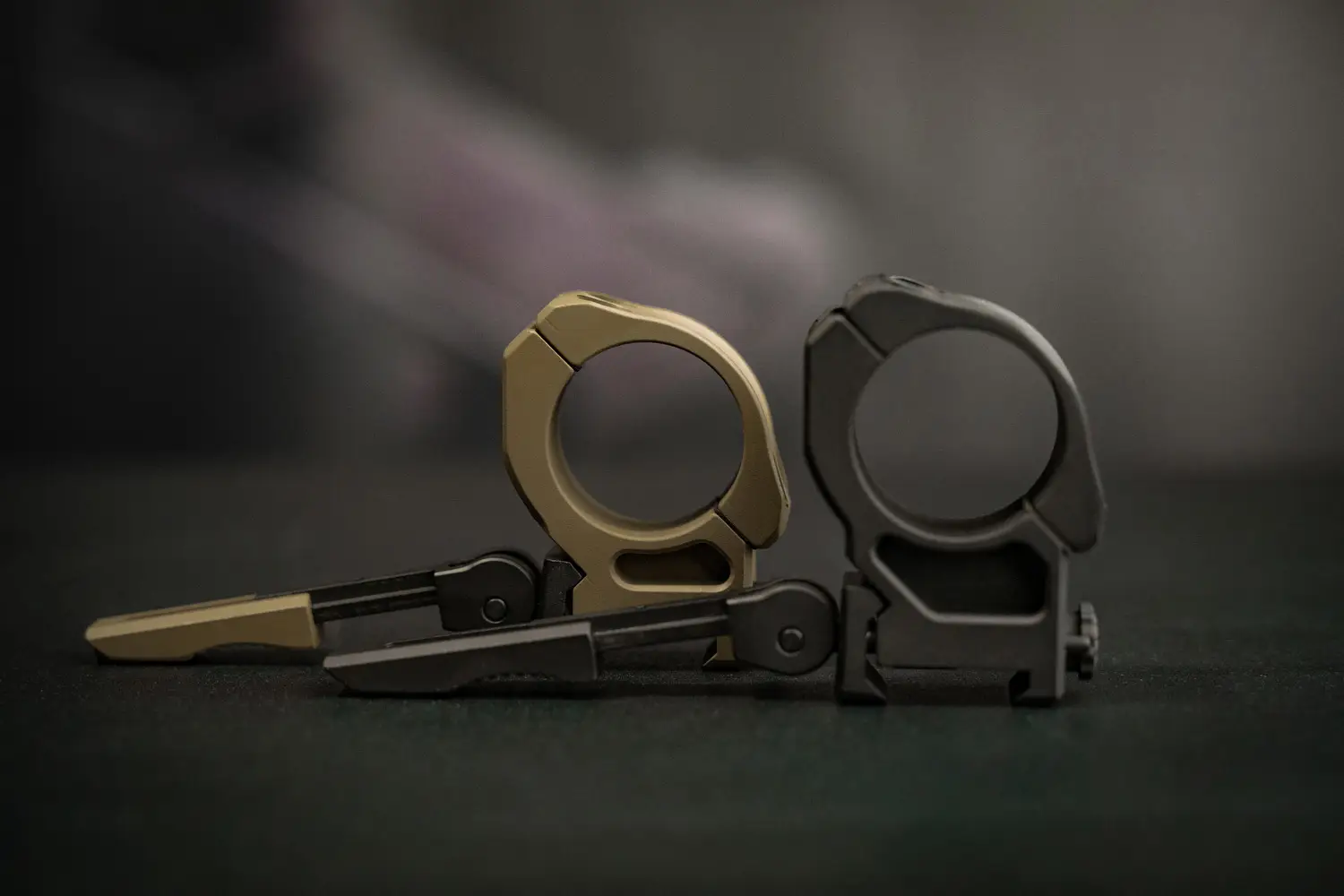

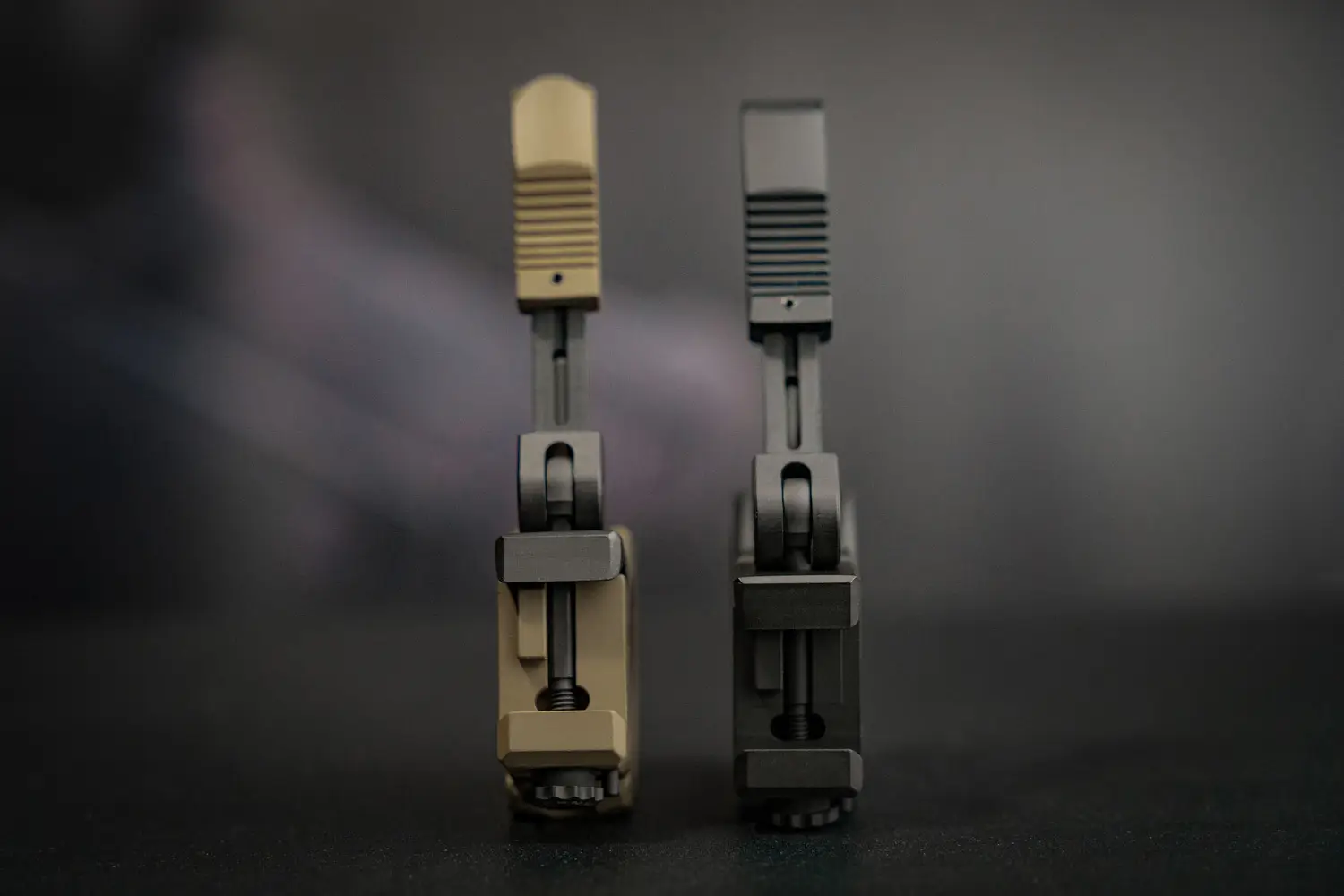

SwiftLock® QD rings combine the secure fit of fixed mounting rings with the convenience of quick-detach action. The vertical telescopic handle provides a comfortable grip and precise control when releasing or locking the mount, addressing a common problem with conventional quick-detach mounts: horizontally positioned locking levers can be difficult to reach in the confined space between the scope and firearm.

The quick-release mechanism makes it easy to remove and refit the optic, even in challenging field conditions. Precision machining and factory-matched rings help maintain alignment and support consistent return-to-zero when the optic is refitted.

The main body is CNC machined from a single billet of aerospace-grade 7075 aluminium, while the smaller parts are CNC machined from alloy steel. The rings are finished in Cerakote® and available in a selection of colours.

An optional tactical half-ring allows compatible rails and accessories to be fitted.

  • Model

  • High

  • Medium

  • Low

  • Height*, mm (in.)

  • 34 (1¹¹⁄₃₂)

  • 30 (1³⁄₁₆)

  • 25,4 (1)

  • Weight, g (oz)

  • 133 (4,7)

  • 132 (4,7)

  • 123 (4,3)

*Height is measured from the centerline of the ring opening to the top of the rail.
